The Phoenix series is designed to offer the flexibility required for Q.A, R&D, and engineering process development.

• Automatic and rapid sample analysis and high-speed dynamic image capture
• Improved precision and reproducibility by the elimination of operator error
• Data checking instantly without open analysis window by preview result function
• User-friendly surface energy calculator function with 3 syringes system
• User-friendly test conditions memory recipe function on each sample
• Available to connect to Laptop or Desktop PC via USB port
• Auto calculation of surface energy and work of adhesion
• High-resolution and powerful image capture system
• Sessile drop method and automated drop to touch-off

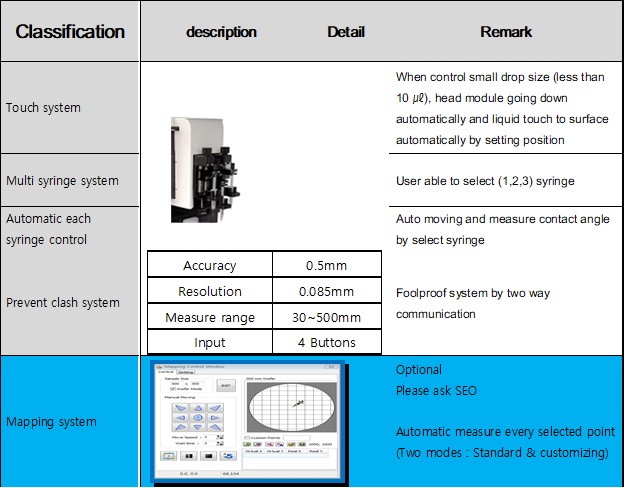

• Fully automated software control of 3 syringes independently
• Automatically drop volume control by software
• Smart capture for super hydrophilic material
• Head module up and down automatically
• Precise calculation of drop volume
• Data comparison function

• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces

1.Static Contact angle measurement

Measurement range : 0~180°

2.Captive dynamic contact angle (Applied only Smart -A, Smart-T, model only)

3.Easy Surface Energy calculator (GGFY, Owens Wendt, Lewis method)

Using measured contact angle data itself

4.Surface tension by pendent drop method

(1mN/m ~ 1000nM/m)

5.Curved surface sample measuring function

6.Automatic capture at after thermodynamic Equilibrium

(Applied only “Smart -T” model)

Able to get contact angle data from three phases thermodynamic equilibrium

3.Automatic capture at after thermodynamic Equilibrium

Contact angle is based on three phases equilibrium, but it is dependent on Sample’s property. There is different equilibrium time for different sample.  User is able to set equilibrium  time as above.

4.Manual mode for critical sample

5.Auto calculate average

• Automatic calculation of the average contact angle data by the software based on the frames captured.

6.Graphical data

9.Manual define Base line function

• User can define the baseline manually for difficult to calculate contact angle

Typical Application

• Detection of organic contamination on a PCB or electronic components.
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption/Wettability of Powder and Pharmacy
• Analysis of plasma treatments to increase the wet ability on polymers surfaces

1.Static Contact angle measurement

Measurement range : 0~180°

2.Captive dynamic contact angle (Applied only Smart -A, Smart-T, model only)

3.Easy Surface Energy calculator (GGFY, Owens Wendt, Lewis method)

Using measured contact angle data itself

4.Surface tension by pendent drop method

(1mN/m ~ 1000nM/m)

5.Curved surface sample measuring function

6.Automatic capture at after thermodynamic Equilibrium

(Applied only “Smart -T” model)

Able to get contact angle data from three phases thermodynamic equilibrium

3.Automatic capture at after thermodynamic Equilibrium

Contact angle is based on three phases equilibrium, but it is dependent on Sample’s property. There is different equilibrium time for different sample.  User is able to set equilibrium  time as above.

4.Manual mode for critical sample

5.Auto calculate average

• Automatic calculation of the average contact angle data by the software based on the frames captured.

6.Graphical data

9.Manual define Base line function

• User can define the baseline manually for difficult to calculate contact angle

The Phoenix series is designed to offer the flexibility required for Q.A, R&D, and engineering process development.

• Data checking instantly without open analysis window by preview results
• Data comparison function
• Improved precision and reproducibility by the elimination of operator error
• Available to connect to Laptop or Desktop PC via USB port
• Auto calculation of surface energy and work of adhesion

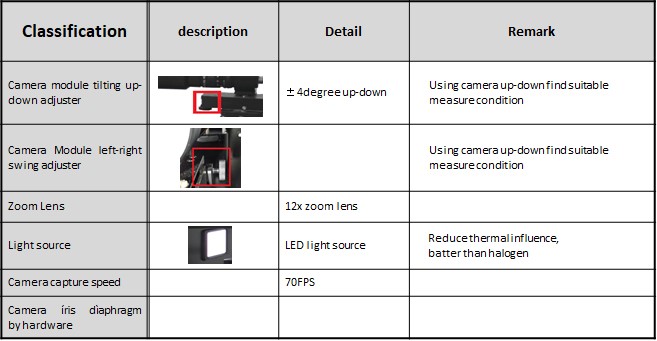

• High-resolution and powerful image capture system,
• Automatic & manual image analysis

• Data checking instantly without open analysis window by preview results
• Static contact angles
• Sequence image captures by time basis & dynamic movies.
• Surface energy/surface tension by pendant drop method
• Real-time contact angle display
• Precise calculation of drop volume
• Data comparison functions

• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces

1.Static Contact angle measurement

Measurement range : 0~180°

2.Captive dynamic contact angle (Applied only Smart -A, Smart-T, model only)

3.Easy Surface Energy calculator (GGFY, Owens Wendt, Lewis method)

Using measured contact angle data itself

4.Surface tension by pendent drop method

(1mN/m ~ 1000nM/m)

5.Curved surface sample measuring function

6.Automatic capture at after thermodynamic Equilibrium

(Applied only “Smart -T” model)

Able to get contact angle data from three phases thermodynamic equilibrium

3.Automatic capture at after thermodynamic Equilibrium

Contact angle is based on three phases equilibrium, but it is dependent on Sample’s property. There is different equilibrium time for different sample.  User is able to set equilibrium  time as above.

4.Manual mode for critical sample

5.Auto calculate average

• Automatic calculation of the average contact angle data by the software based on the frames captured.

6.Graphical data

9.Manual define Base line function

• User can define the baseline manually for difficult to calculate contact angle

The liquid is dispensed using a precise manual system for small drop volume and with interchangeable tip size. The backlight system employed by the Phoenix Mini is designed to improve image quality which helps contact angle analysis.

• Precise contact angle measurements from 0 ⁰ to 180⁰
• Convenient operation and portability via IEE1394 or USN communication
• Auto calculation of contact angle & surface energy
• Easy and simple operation
• Static and Dynamic contact angle
• Advancing and Receding Contact angle by Captive method
• Sequence image capture by time basis & dynamic movies
• Sessile Drop | Pendant Drop Surface Tension
• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces

• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces

New Stage Features 1:

• Every main frame is able to change the length for its sample figure

New Stage Features 2:

New Stage Features 3:

• Total flexibility: Easy to upgrade ( Manual → Auto One Drop → Multi syringes ) by modular design main frame.
• Automation : Automatic measurement progress at once
• User friendly : Easy to transform for changed sample types
• Tool Free changeover: Additional tools are not required for modular change.
• Changeable module position : According to sample nature, module can be change to cater for diverse sample nature/ form factor
• Huge application advantage
• Thin sample : Use on Horizontal platform
• Bulky sample: move all modules ( camera, light source, stage, head ) into vertical position
• Data output : Data can be exported as Excel file, offering the highest flexibility for further data processing

• Static / dynamic contact angle ( captive method & tilting method )
• Surface energy calculation
• Surface tension and interfacial tension by Pendent drop method
• Curve sample surface contact angle measurement
• One click operation – All process from dispense one drop of test liquid, touch drop of the liquid to sample surface with just one click.

1.Static Contact angle measurement

Measurement range : 0~180°

2.Captive dynamic contact angle (Applied only Smart -A, Smart-T, model only)

3.Easy Surface Energy calculator (GGFY, Owens Wendt, Lewis method)

Using measured contact angle data itself

4.Surface tension by pendent drop method

(1mN/m ~ 1000nM/m)

5.Curved surface sample measuring function

6.Automatic capture at after thermodynamic Equilibrium

(Applied only “Smart -T” model)

Able to get contact angle data from three phases thermodynamic equilibrium

3.Automatic capture at after thermodynamic Equilibrium

Contact angle is based on three phases equilibrium, but it is dependent on Sample’s property. There is different equilibrium time for different sample.  User is able to set equilibrium  time as above.

4.Manual mode for critical sample

5.Auto calculate average

• Automatic calculation of the average contact angle data by the software based on the frames captured.

6.Graphical data

9.Manual define Base line function

• User can define the baseline manually for difficult to calculate contact angle

The Phoenix Alpha is lighter and has a smaller footprint than the Phoenix 300 series but has all functions needed for contact angle analysis.

• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces

Why using Portable Contact Analyzer?

• When the sample size cannot be prepared/ cut to fit on the stage of general purpose contact analyzer
• Not constraint by the sample size and shape
• Bringing the analyzer to the sample instead of bringing the sample to the analyzer

• Data checking instantly without open analysis window by preview result function
• High-resolution and powerful image capture system
• Able to connect to laptop or desktop PC via USB port
• Improved precision and reproducibility by the elimination of operator error
• INSIDE OF device condition checking window
• Upgradable design ( Manual to Auto and Touch )
• Light-weight
• LED light source

• Sessile drop method
• Static contact angles
• Surface tension by pendant drop method
• Dynamic contact angle ( Auto & Touch model)
• Easy surface energy calculation process
• One touch button control drop volume
• Capture time ( Auto & Touch model)
• Head module moves up and down automatically ( Touch model only)
• Sequence image is captured by the programmed time interval.
• Data comparison function
• Precisely calculates drop volume
• Unlimited repeat function ( Touch Model only)
• Auto captures at Thermodynamic equilibrium ( Touch model )

1.Static Contact angle measurement

Measurement range : 0~180°

2.Captive dynamic contact angle (Applied only Smart -A, Smart-T, model only)

3.Easy Surface Energy calculator (GGFY, Owens Wendt, Lewis method)

Using measured contact angle data itself

4.Surface tension by pendent drop method

(1mN/m ~ 1000nM/m)

5.Curved surface sample measuring function

6.Automatic capture at after thermodynamic Equilibrium

(Applied only “Smart -T” model)

Able to get contact angle data from three phases thermodynamic equilibrium

3.Automatic capture at after thermodynamic Equilibrium

Contact angle is based on three phases equilibrium, but it is dependent on Sample’s property. There is different equilibrium time for different sample.  User is able to set equilibrium  time as above.

4.Manual mode for critical sample

5.Auto calculate average

• Automatic calculation of the average contact angle data by the software based on the frames captured.

6.Graphical data

9.Manual define Base line function

• User can define the baseline manually for difficult to calculate contact angle

Why using Portable Contact Analyzer?

• When the sample size cannot be prepared/ cut to fit on the stage of general purpose contact analyzer
• Not constraint by the sample size and shape
• Bringing the analyzer to the sample instead of bringing the sample to the analyzer

• Software working on window XP, window 7 32bit
• Preview function for rapidly capture image
• Accuracy ± 0.1 °
• Contact angle measurement range: 3- 180  °
• No required cutting sample
• 2 modes of manual baseline
• 4 modes of capture image
• Data export to Microsoft Excel
• High resolution and powerful image capture system
• Available to connect to notebook or desktop PC via USB port
• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces
